Botech Advanced Detection System

Precision Sensing for Real-Time Control

A compact, outdoor-rated platform combining LiDAR, Radar, or Ultrasound with proprietary hardware and software for reliable detection in traffic signals, Transit Signal Priority (TSP), and smart-city infrastructure.

Designed and Developed in Canada
Explore ADS

Overview

The Botech Advanced Detection System (ADS) is a high-performance detection solution for complex traffic and transit environments. It integrates precision sensors with deterministic control logic to deliver dependable actuation for traffic signal control, TSP, and broader smart-city deployments.

Multi-Sensor Options

Choose LiDAR, Radar, or Ultrasound per site needs—balancing range, refresh rate, and near-field fidelity.

Edge Intelligence

On-device logic validates detections and avoids false calls, enabling safe behavior during network loss.

PoE Simplicity

Power and data over a single cable reduces installation complexity and supports rapid deployment.

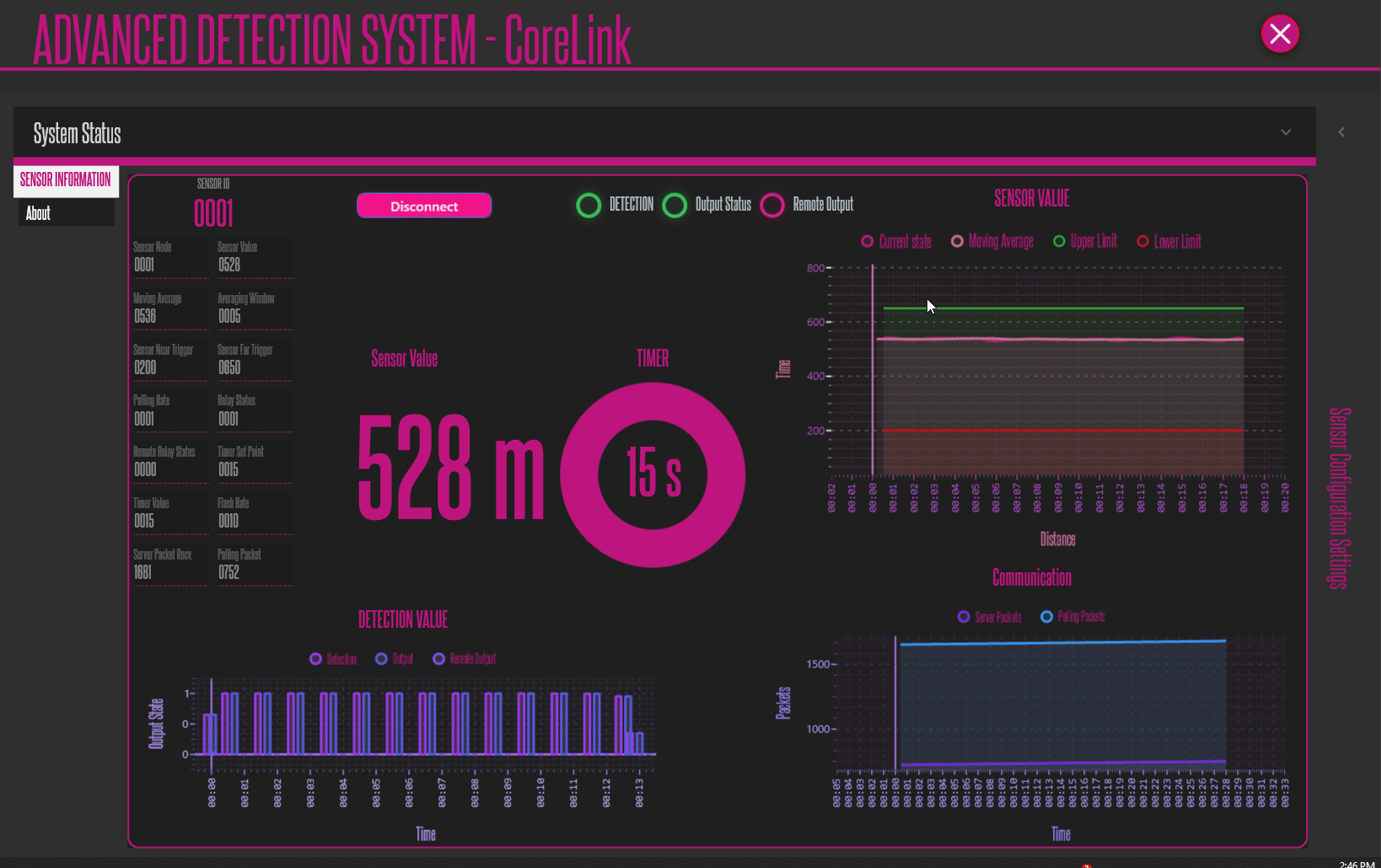

Botech ADS sensor detecting vehicles and pedestrians in real time

Real-time detection visualization (LiDAR sensor mode)

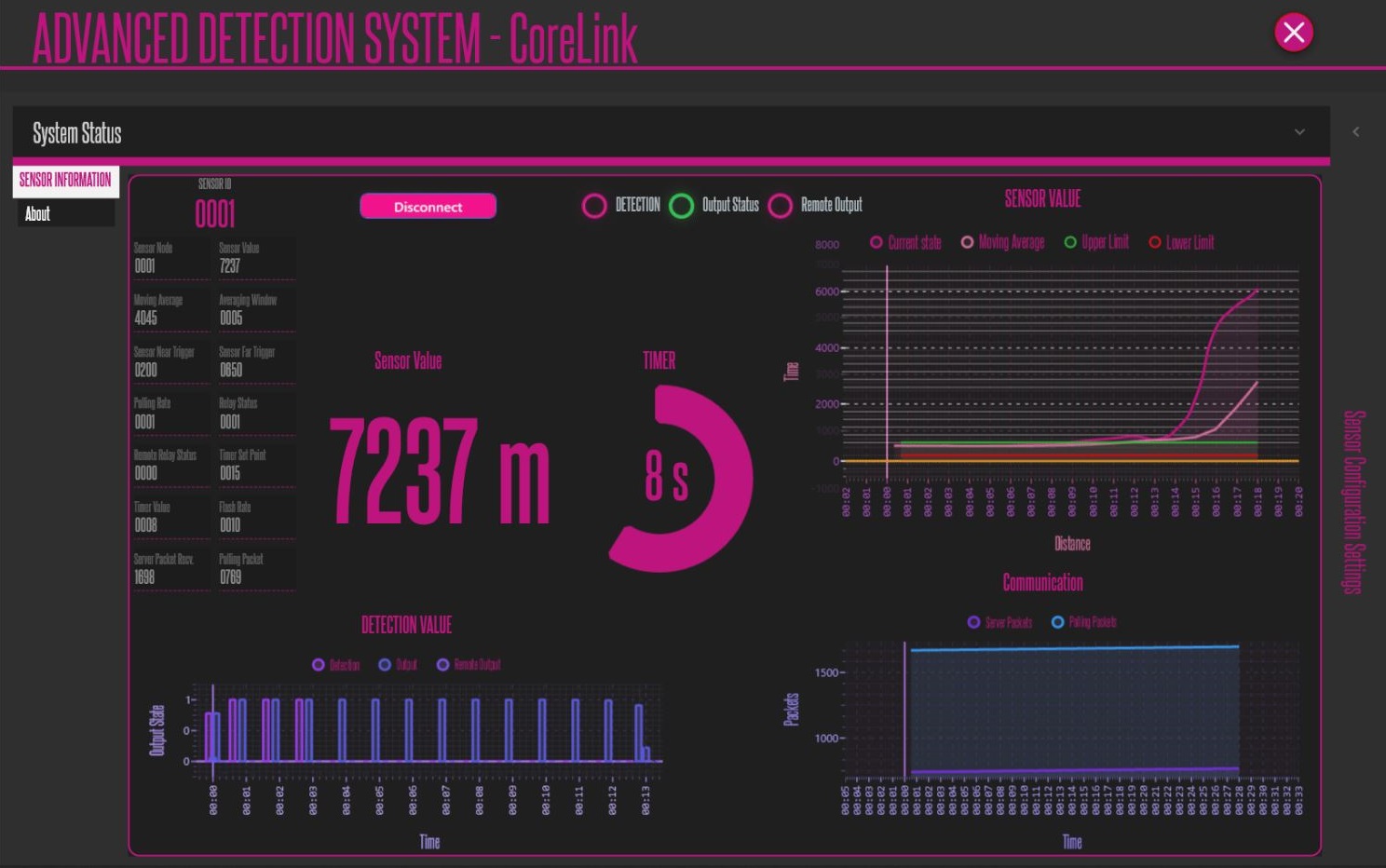

Botech ADS Windows UI – Live sensor monitoring with distance, timer, graphs, and output status

Real-time Windows UI for sensor configuration, live monitoring, and system diagnostics.

Technology & Architecture

Device Composition

ADS pairs the selected sensor (LiDAR, Radar, or Ultrasound) with a hardened processing module and configurable I/O. Two-way links enable conditional detection, advanced logic, and synchronized behaviors across nodes.

Scalable & Transparent

A modular architecture scales to 250+ sensors, with a transparent design that simplifies installation, troubleshooting, and lifecycle upgrades.

Casing & Environmental

  • Outer size: 320 × 114 mm; Inner size: 108 mm
  • Material: Stainless Steel; Ingress Protection: IP66
  • Operating Temperature: per sensor type (see table)

Operator Tools

Windows-based UI for configuration and real-time monitoring. Wireless links to controllers can reduce trenching cost.

Validation Behavior

Output is capped at 1 second to ensure detection validation in close-contact applications and prevent spurious activations.

Technical Specifications

FeatureLiDARRadarUltrasound
Supply VoltagePoE (56 VDC)PoE (56 VDC)PoE (56 VDC)
ModeSingle ShotContinuous / Single ShotPulse-Echo
Communication InterfacePoE (Power over Ethernet)PoE / EthernetPoE / Ethernet
Wavelength / Frequency905 nm (near IR)24 GHz / 77 GHz42 kHz
Operating Temperature−40 °C to 85 °C−40 °C to 85 °C−40 °C to 65 °C
Operating RangeUp to 180 m30 m+Up to 10 m
Non-Detection Zone5 cm< 50 cm~10 cm
Distance Resolution1 cm50 cm~1 cm
Refresh Rate1–1000 Hz (default 100 Hz)10–500 Hz50 Hz
Best Use CaseLong-range precision detection, traffic TSPHigh-speed vehicle detection, wide-area monitoringShort-range detection, pedestrian/bus door sensing

Key Features & Advantages

High Accuracy

LiDAR option delivers 1 cm distance resolution with near-99% detection accuracy across lighting and weather.

Reliable by Design

Sensor faults do not generate false calls, preventing unnecessary phase activations.

Real-Time Control

Configurable refresh rates support dynamic traffic management and validation logic.

Flexible Integration

PoE simplifies installation; Ethernet connects to controllers, SCADA, or dashboards.

Scalable Deployments

Scale to 250+ sensors, coordinating multiple approaches and sites.

Transparent Operation

Clear diagnostics and UI reduce setup time and streamline maintenance.

Applications

Transit Signal Priority (TSP); advanced vehicle detection in mixed traffic; traffic signal optimization; and smart-city/ITS deployments requiring dependable sensing and deterministic control.

TSP for Buses/Trams

Long-range, precise approach detection at speed.

Mixed Traffic Lanes

Robust detection for complex corridors and shared spaces.

Smart-City & ITS

Seamless integration with controllers, PLCs, and cloud dashboards.

Botech Engineering & Consulting Inc.

Botech designs and tests intelligent detection and control systems in Canada, meeting rigorous performance and safety expectations for municipal and industrial infrastructure.
